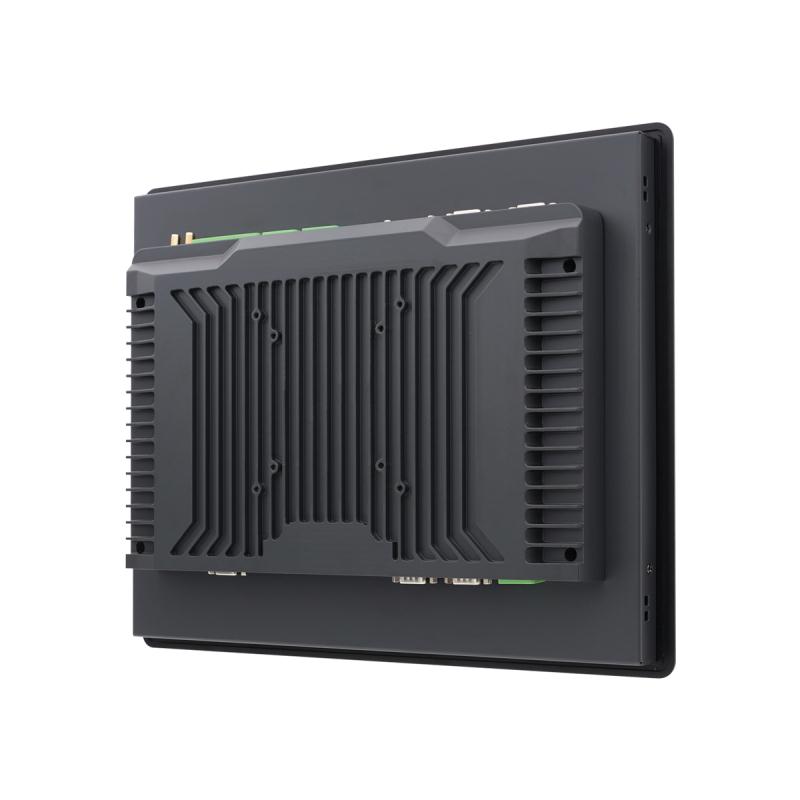

19” Fanless Industrial Panel PC Rugged Computer

General Details
Rextouch’s Industrial Panel PCs are made to perform in extreme production environments at the highest
capacity possible. Designed with the utmost in durability and performancecustomized to your Panel PC
specifications. We are a full-service industrial computer provider. Our models range from fanless
Celeron Panel PCs to high-performance XEON/i7 models and sunlight readable touch screens to panel-mount
non-touch screens. A wide variety of custom options is available on each panel pc model.

Our Panel PCs range from 10.1″ to 22″ support IP65 front bezel and offer full body protection. The
available PCIe/PCI expansion slots along with extended operation temperature and various mounting
solutions meet our customers’ needs. We also provides Industrial Embedded PC solutions. Both Panel PCs
and Embedded PCs are a perfect fit in many industries such as automation, manufacturing, surveillance,
transportation, as well as the food & beverage market.

– Onboard Intel Core J1900/i3/i5/i7 CPU for options
– Rugged Aluminium housing design with Fanless design
– PCAP Multi Touch screen for options
– Front panel protection Rating: IP65
– Support SATA and Mini SATA
– Support 4G network by mPCIe
– Multi extended I/O

Techical Info




Hardware

CPU Intel J1900/ i3/i5/i7 Processor
RAM 4Gb /8Gb (optional)
STORAGE SSD 64Gb/128Gb  (optional)
NETWORK Realtek 8111E 10/100/1000M, Support WIFI
Output Ports USB2.0*4 / RJ45*1 / GPIO*1 / Mic*1/Headphone Jack *1 / HDMI*1 / VGA*1 / DC Jack*1
Extended Ports 2*RS-232 / 1*RS-485 / 1*Printer Slot
Power Button Built-in
Physical characteristics Material Aluminium + Metal
Fan / Fanless Fanless
O/S Operation System Support Win7 /Win10/Linux/Android


Others

INPUT DC12V 5A   +/-5%
VESA 75*75 / 100*100
Speakers Built-in




Screen

DISPLAY TYPE 19inch TFT LED
Resolution 1280*1024
View 80 (LEFT), 80 (RIGHT), 80 (UP), 80 (DOWN)
Brightness (cd/m²) 400cd/m²
Contrast 1000:1
Backlight Life 30,000 hrs (Min.)




Touch Screen

TYPE PCAP touch panel
Light Transmittance >90%
Controller Interface USB port
Durability(Touch Times) >35 million times




Environment

Working Temperature -20 ~ +60degree
Storage Temperature -40 ~ +85degree
Relative humidity 0% ~ 90%Relative humidity, non condensation
EMC CE, FCC
CERTIFICATE CE, RoHS
Front panel protection IP65
